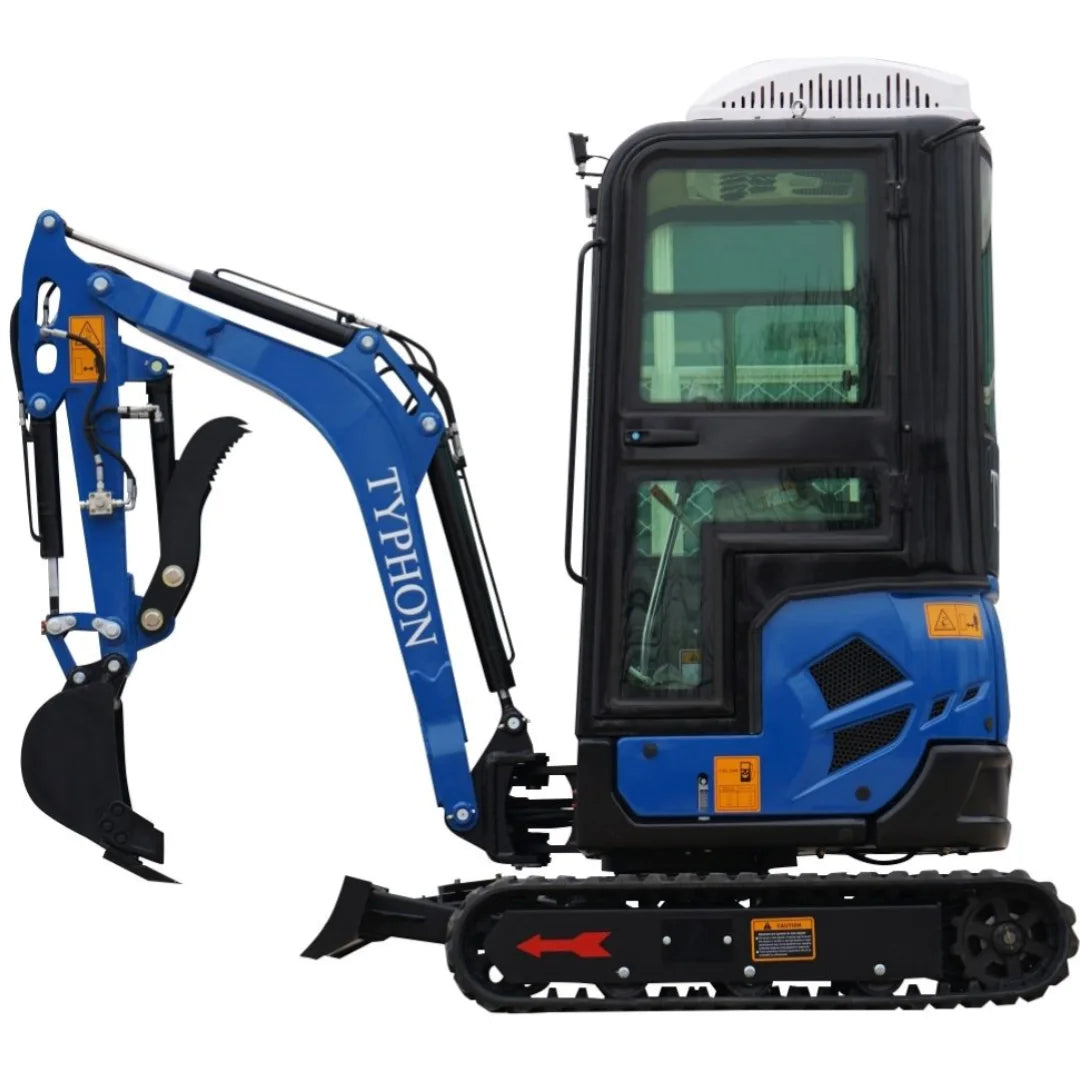

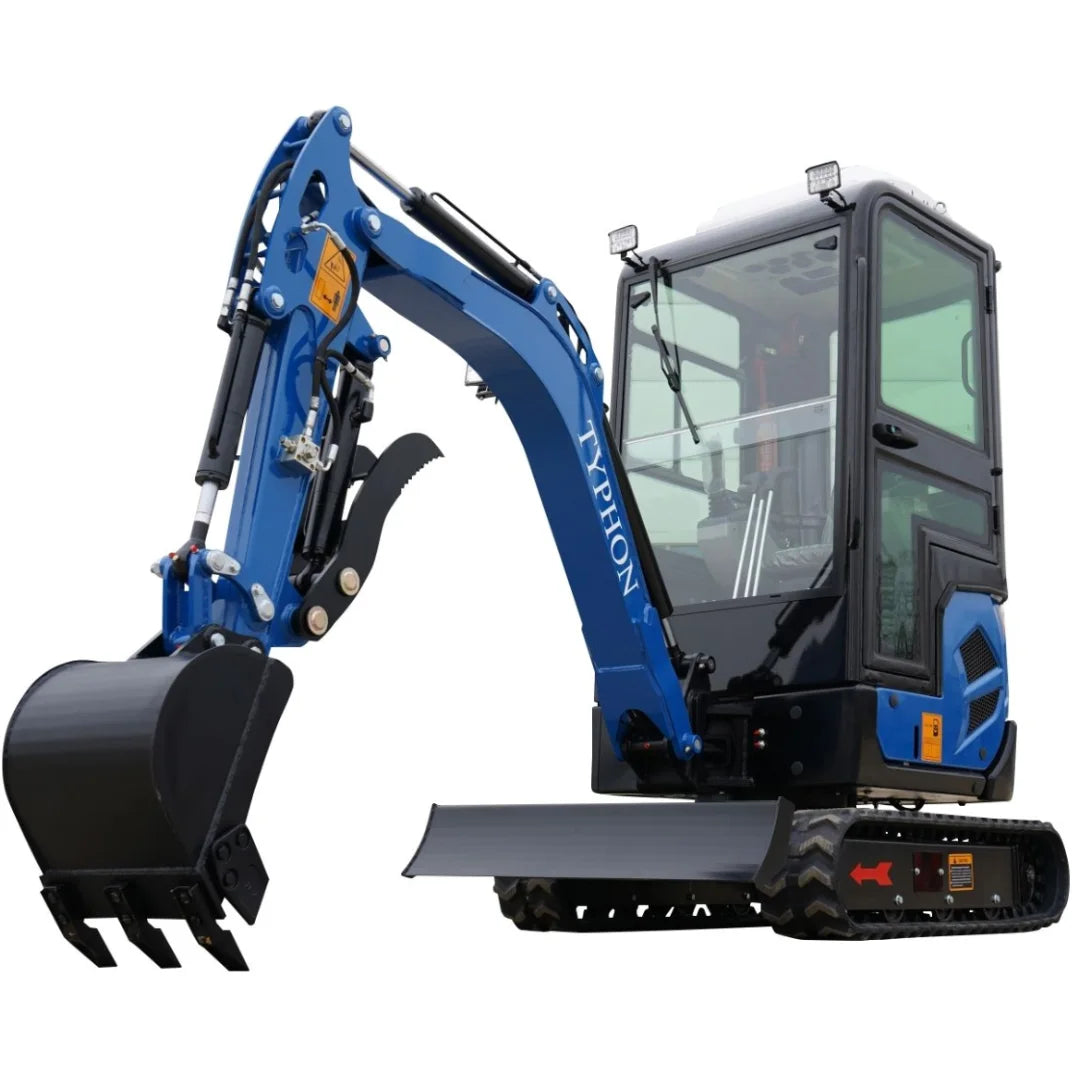

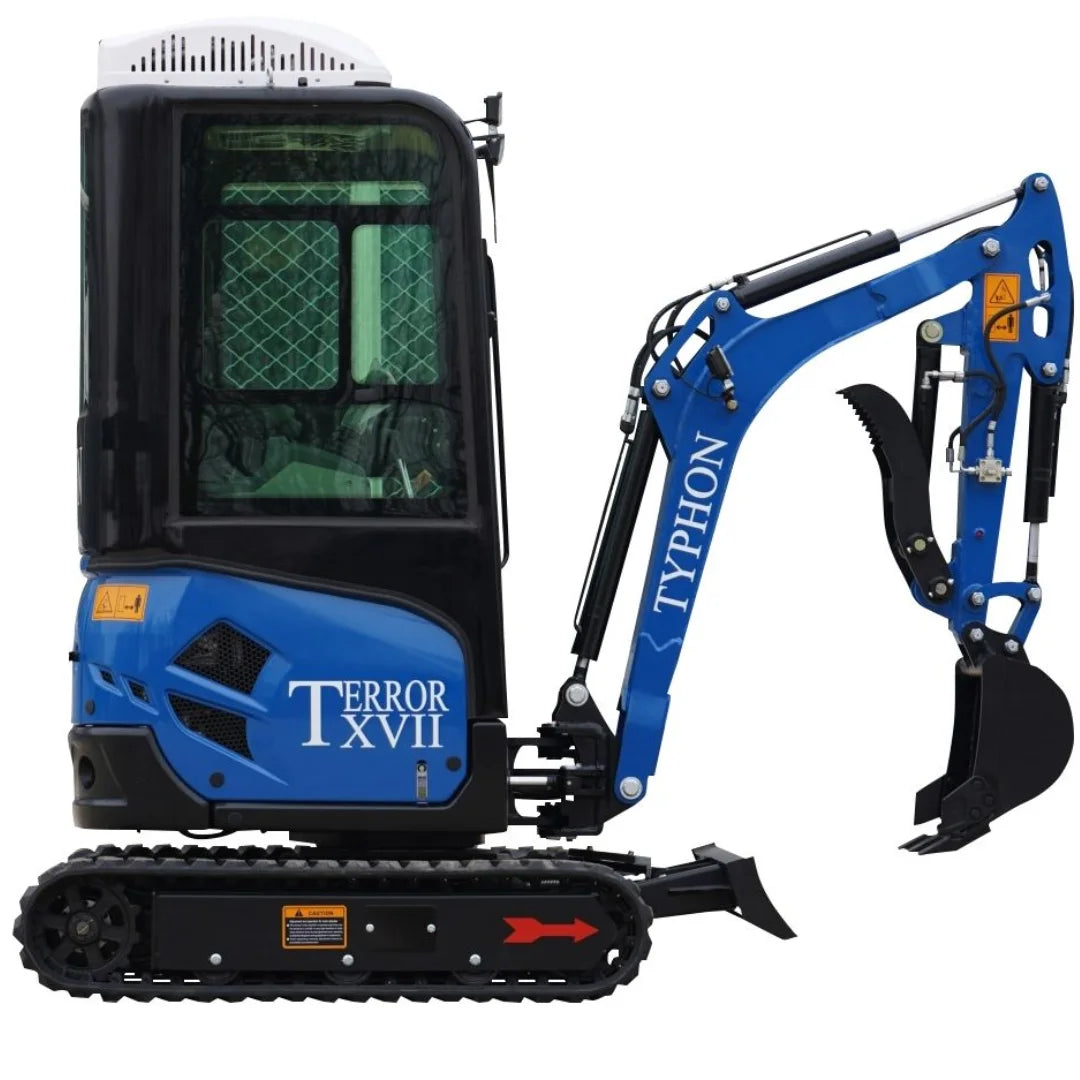

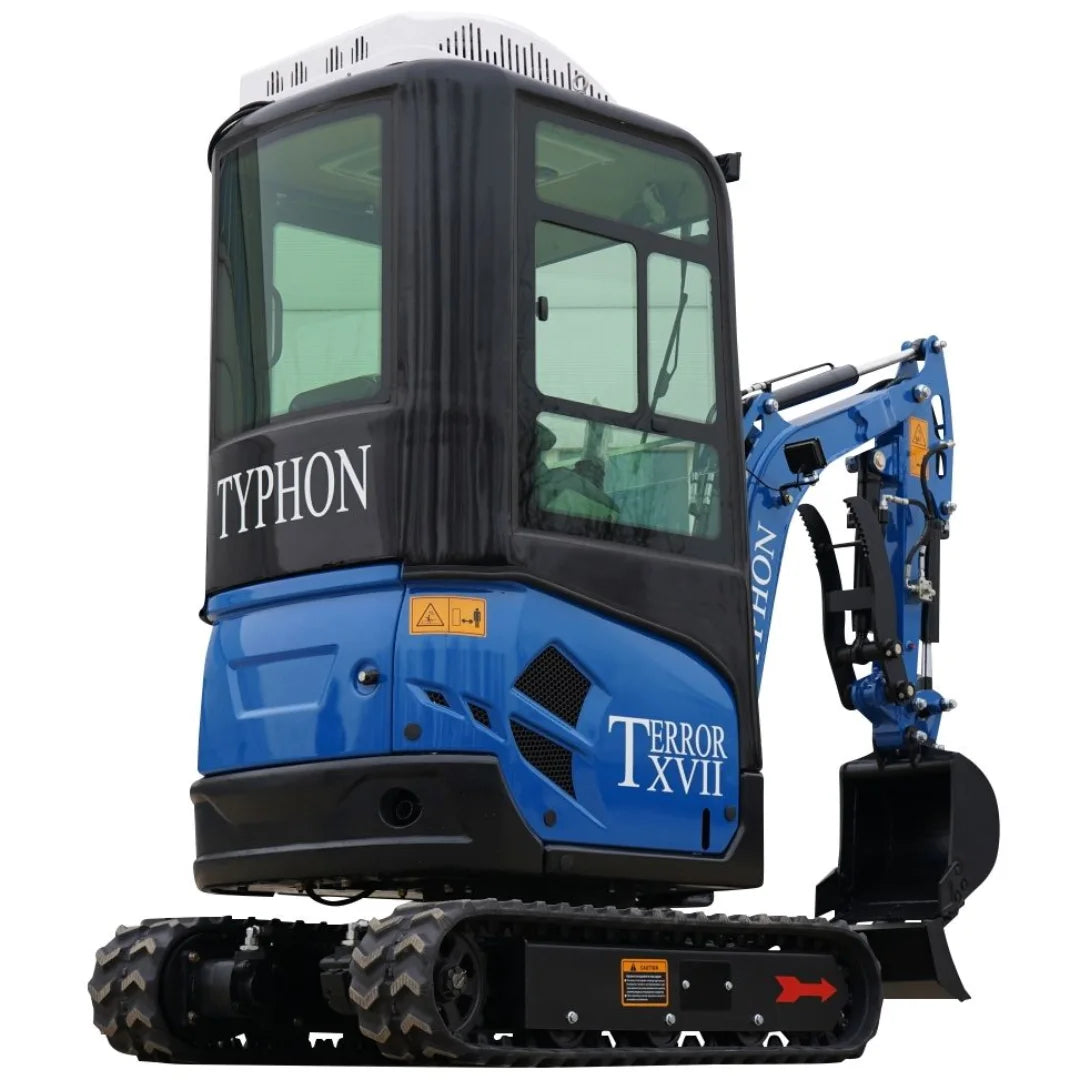

2025 TYPHON TERROR XVII – 4,000 lb Cabin Mini Excavator Powered by Kubota D902 Diesel Engine | EPA Certified
Choose options
The 2025 TYPHON TERROR XVII is a high-performance mini excavator built for serious work. With its enclosed, climate-controlled cabin and reliable Kubota D902 engine, it delivers the power, comfort, and precision you need on any jobsite.
🔧 Key Features

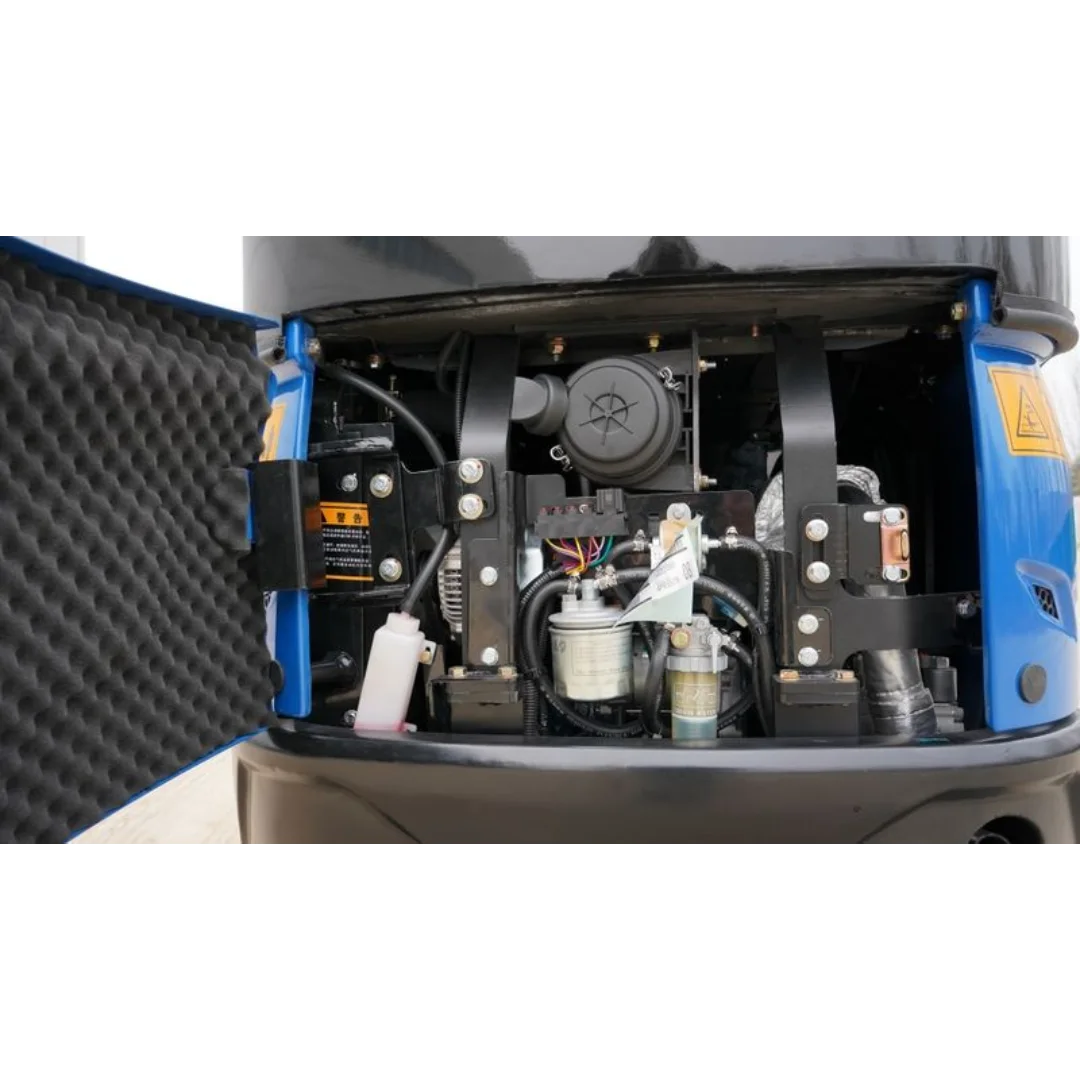

Engine: Kubota D902, 3-cylinder, water-cooled diesel, 20.4 HP @ 3,600 RPM
Operating Weight: 4,000 lbs (1,814 kg)
Bucket Capacity: 0.045 m³ (1.59 ft³)
Max Digging Depth: 5.9 ft (1.8 m)
Max Digging Reach: 9.5 ft (2.9 m)

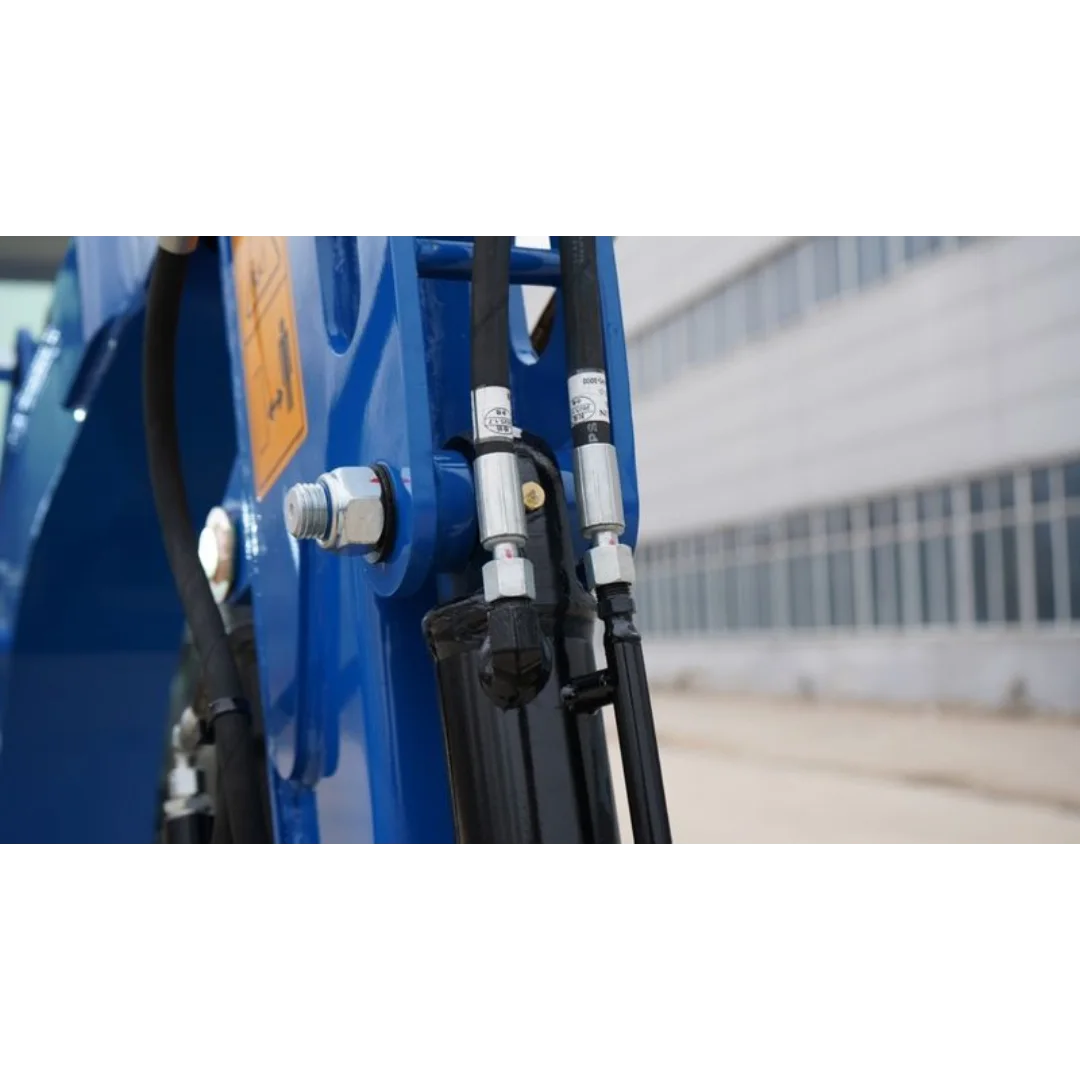

Hydraulic Pressure: 24.5 MPa
Swing Radius: 970 mm (3'2")

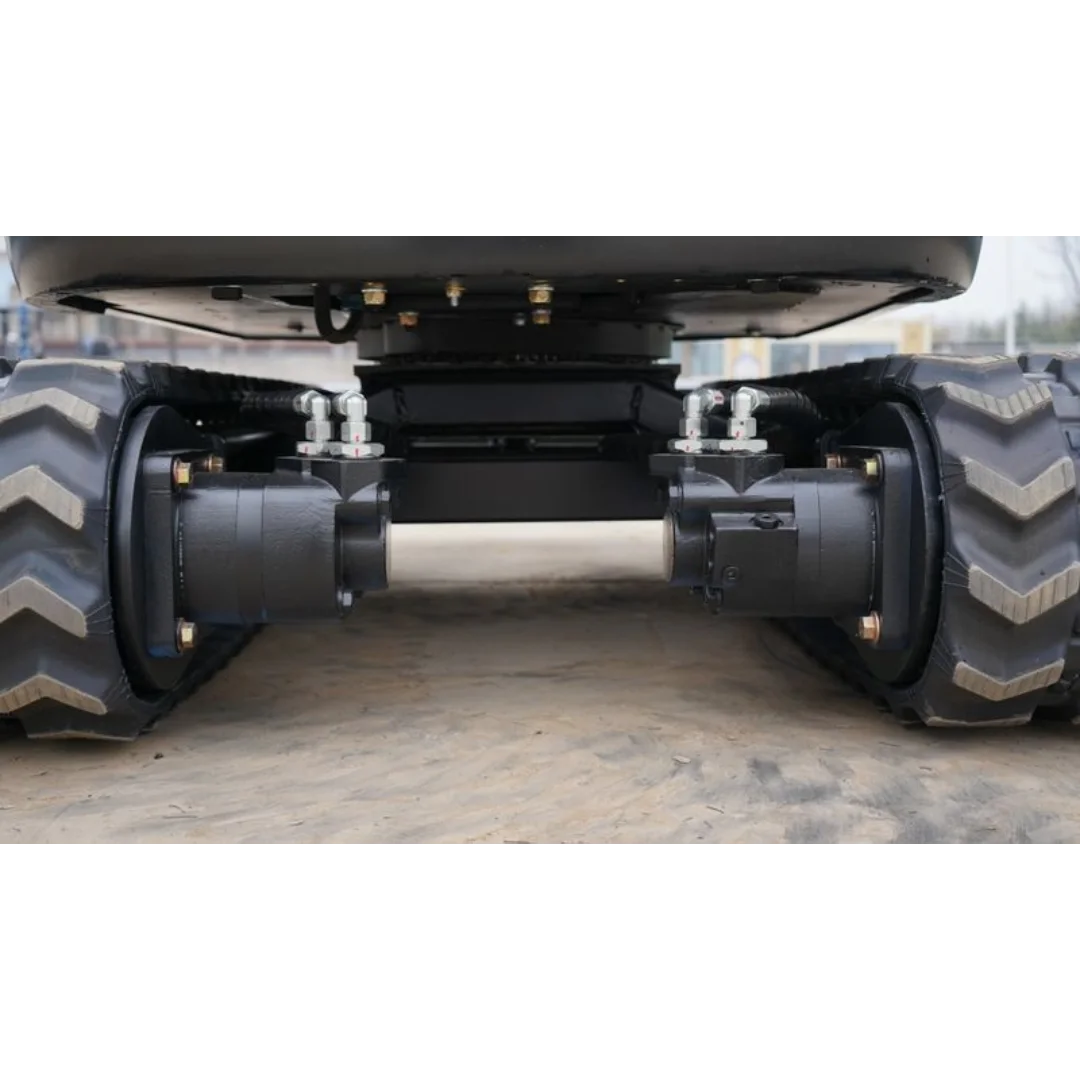

Ground Clearance: 380 mm (15")
Fuel Tank: 45 liters
Hydraulic Oil Tank: 41 liters

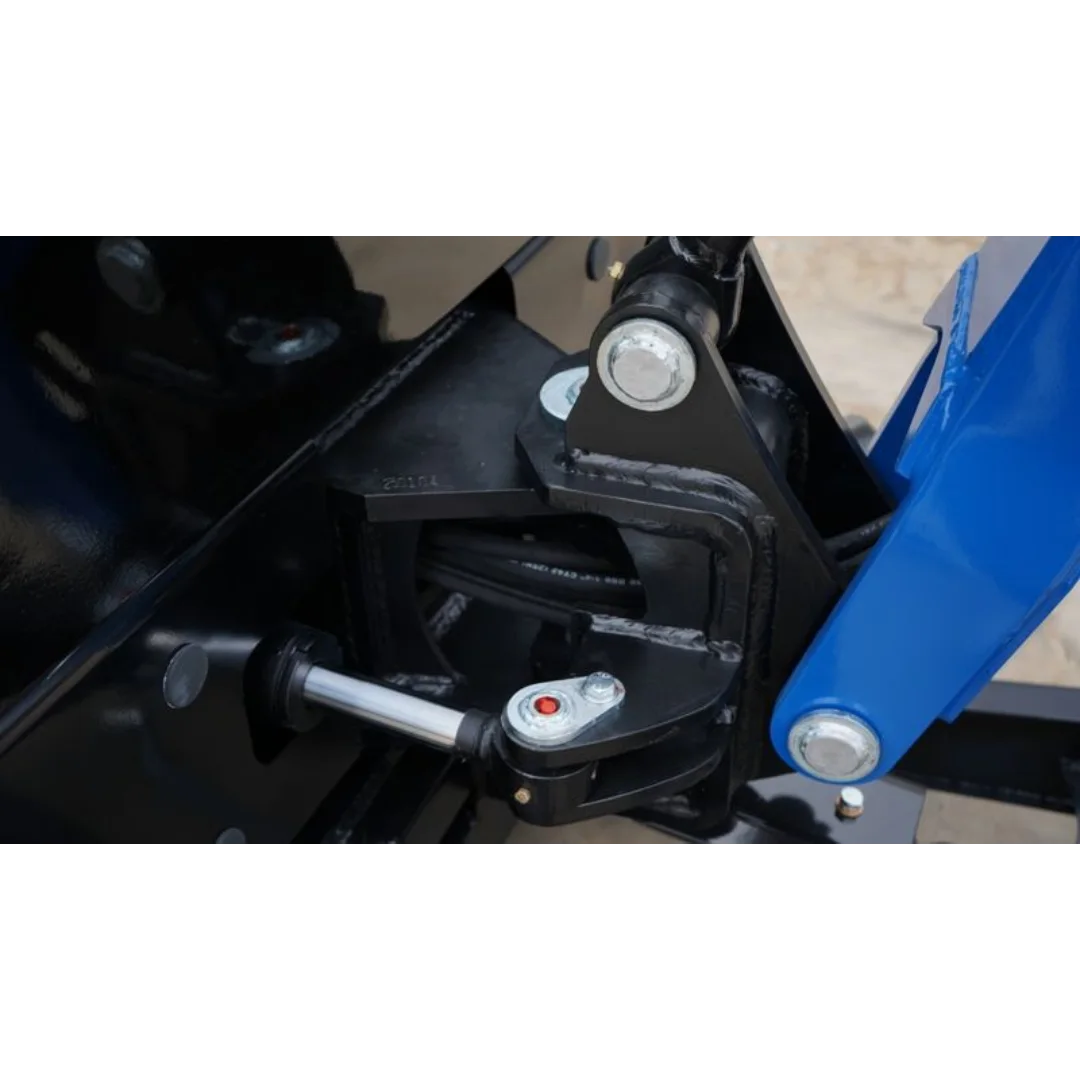

Boom Swing: 70° left / 70° right

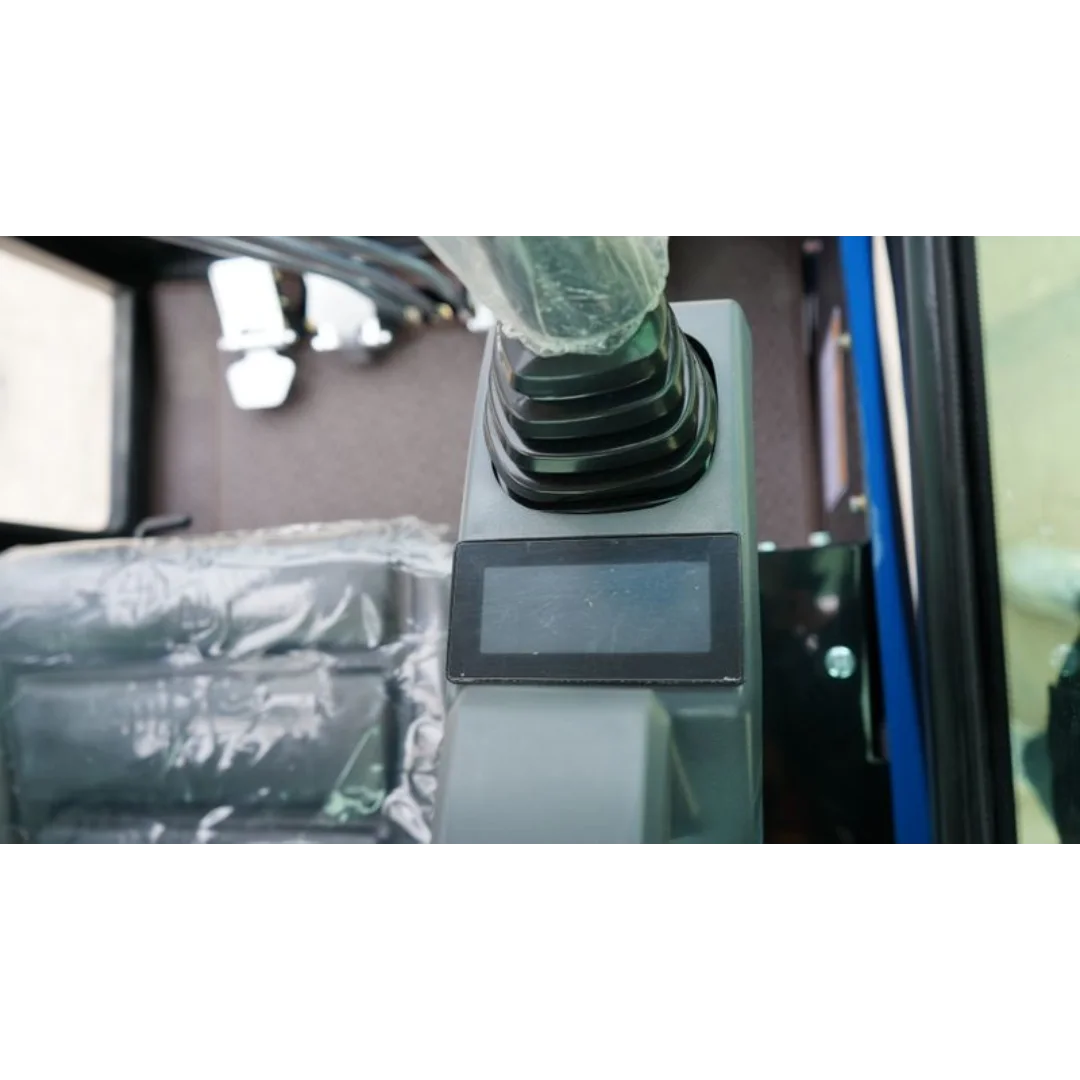

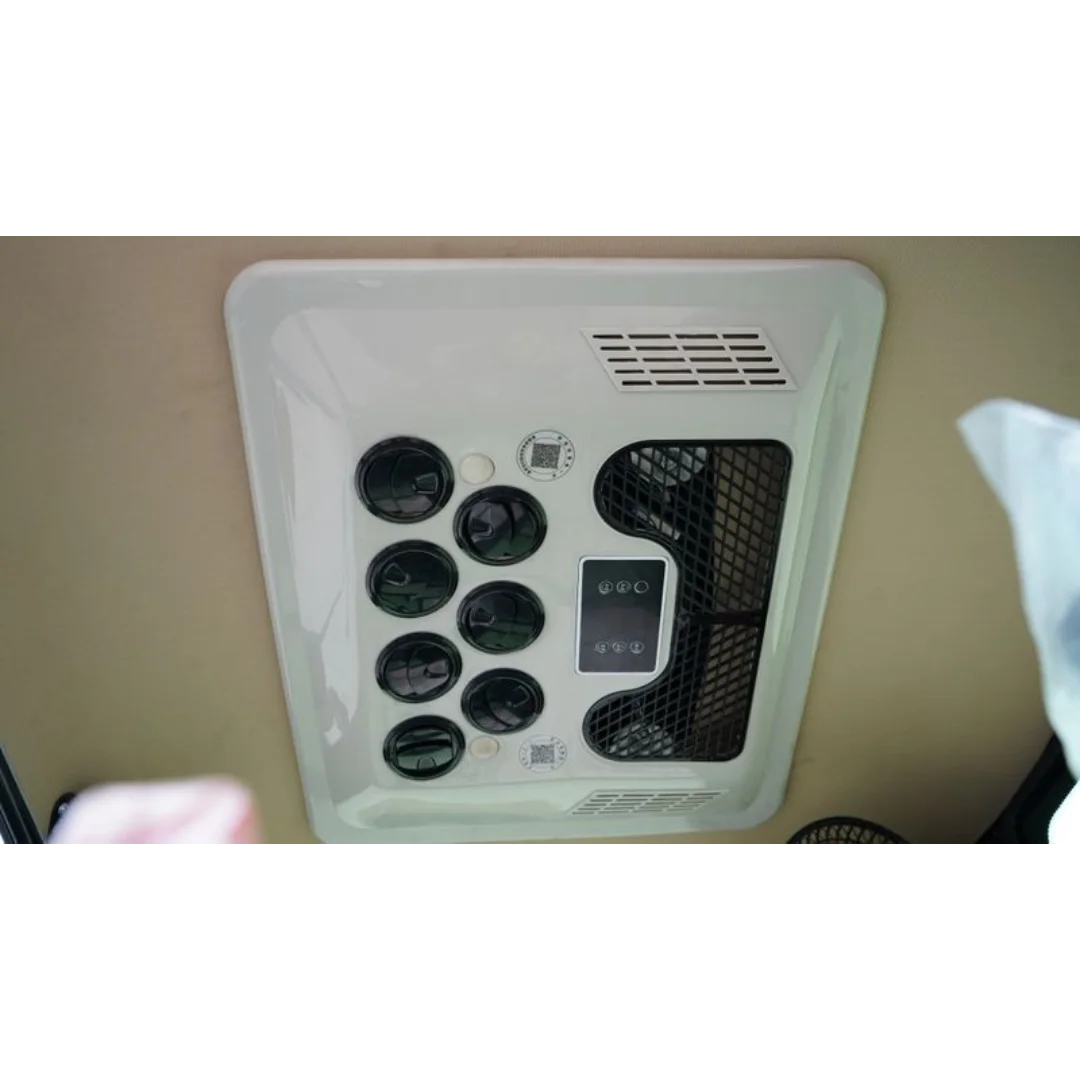

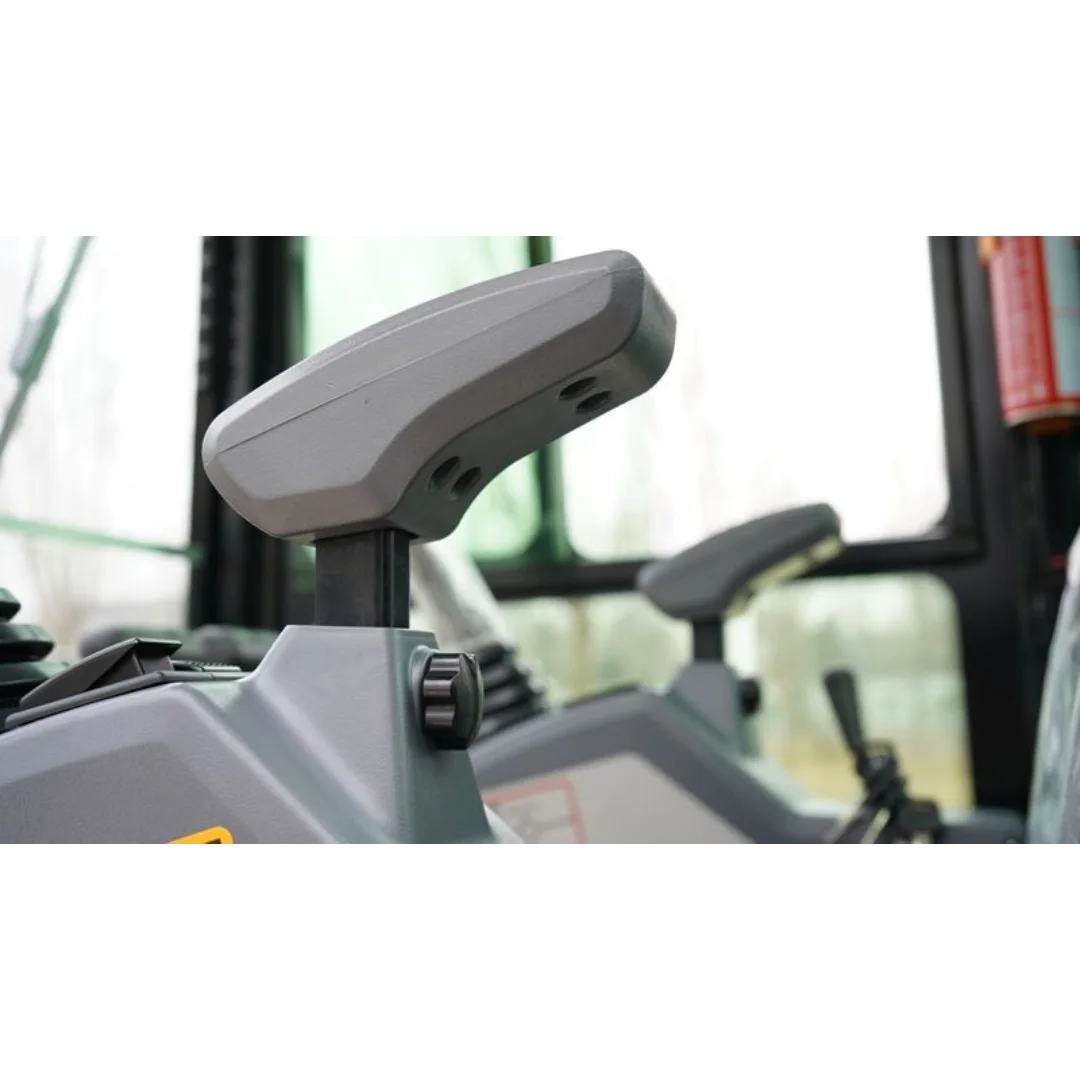

Cabin: Fully enclosed with heating and air conditioning
Certification: EPA Certified

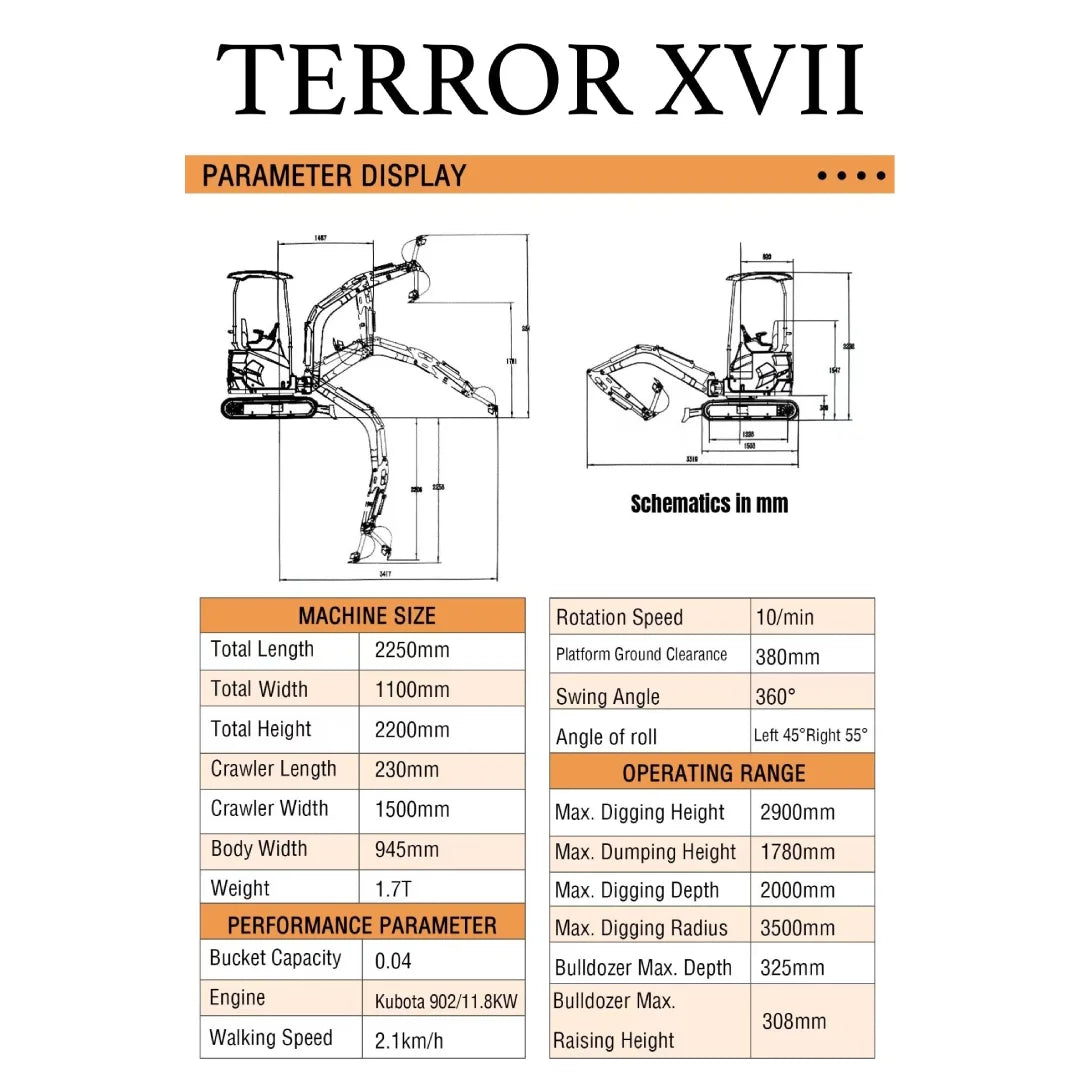

📊 Technical Specifications
| Engine Model | Kubota D902 |
| Horsepower | 20.4 HP @ 3,600 RPM |
| Operating Weight | 4,000 lbs (1,814 kg) |
| Bucket Capacity | 0.045 m³ (1.59 ft³) |
| Max Digging Depth | 5.9 ft (1.8 meters) |
| Max Digging Reach | 9.5 ft (2.9 meters) |
| Hydraulic Pressure | 24.5 MPa |
| Swing Radius | 970 mm (3'2") |
| Ground Clearance | 380 mm (15 in) |
| Fuel Tank Capacity | 45 liters |
| Hydraulic Oil Capacity | 41 liters |
| Boom Swing | 70° left / 70° right |
| Cabin Features | A/C and Heating |
| EPA Certification | Yes |
📦 Shipping & Delivery
Standard Shipping: 15–25 business days — Free
Express Delivery: 7–10 business days — $150
Tracking Info: Sent within 24 hours of dispatch
No forklift required — trucks are equipped with ramps for safe, ground-level unloading
🛠️ Applications
Landscaping
Construction sites
Trenching & digging
Public works
Agricultural use
Ditch and rock work
Residential & commercial projects
🔄 Return & Warranty
Returns: 60-day return period (unused and in original condition)
Warranty: Full 5-year warranty covering parts and performance defects
📦 What's in the Box
1x TYPHON TERROR XVII Mini Excavator

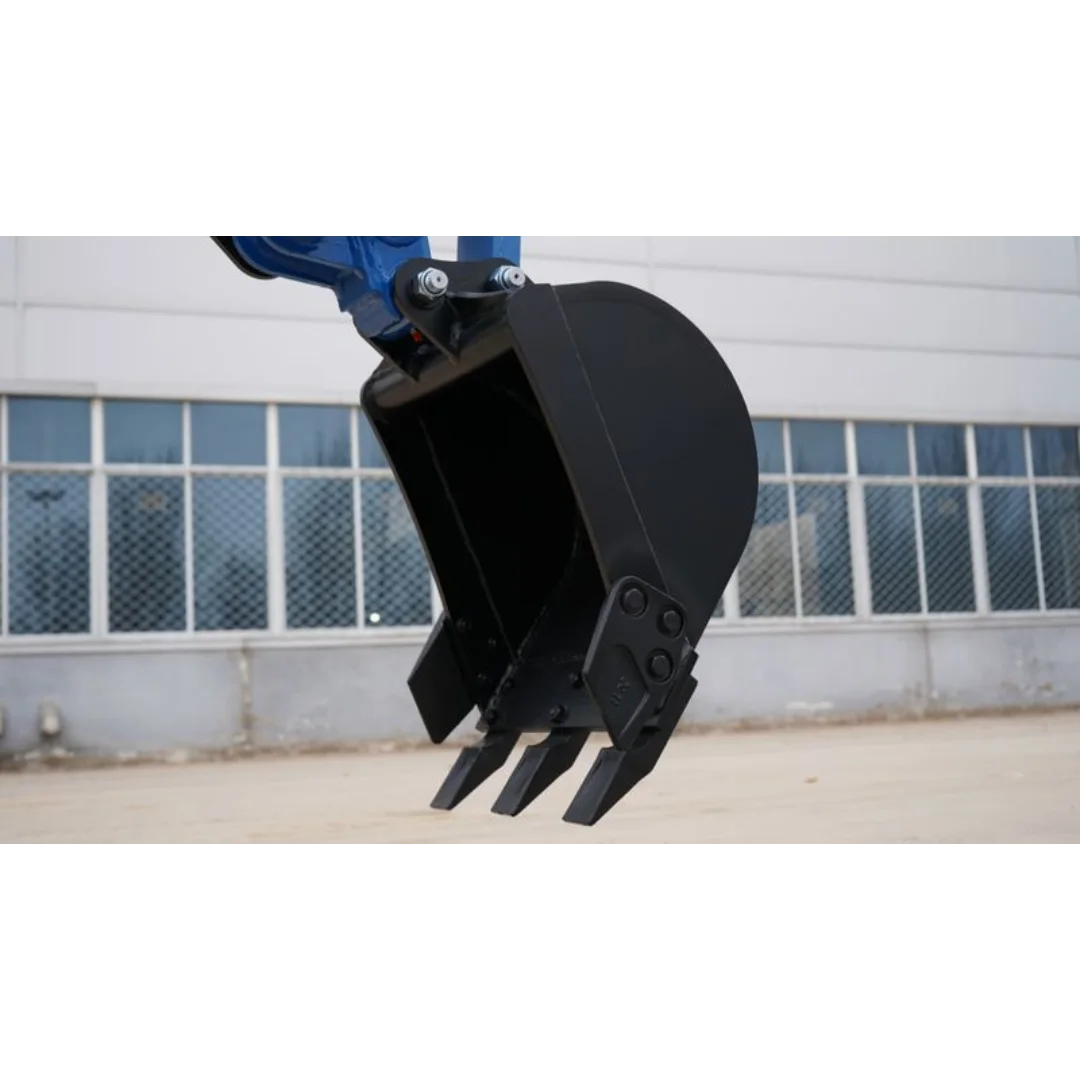

1x Standard bucket
1x Tool kit
1x Digital user manual
1x Protective canopy
The 2025 TYPHON TERROR XVII Cabin Mini Excavator is a versatile and efficient machine, designed to meet the demands of various projects while ensuring operator comfort and environmental compliance.
